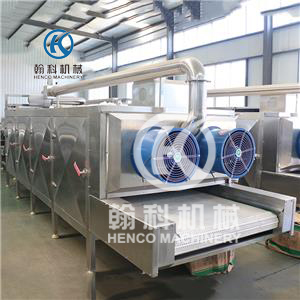

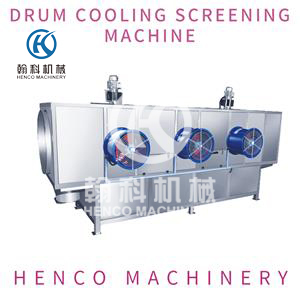

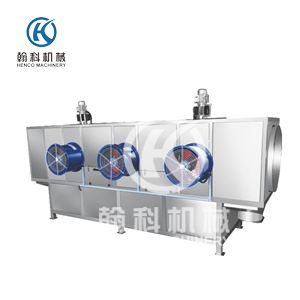

Drum Cooling Screening Machine
The whole machine is made of 304 stainless steel, safe, easy to clean, easy to operate, by the frame, cover, cooling device, dehumidification device, stirring device and rotating device.
- Henco
- Shandong China
- Within 15 Days
- Factory Direct Supply
- Information
- Video
Product details Multi-directional display
1. The equipment is composed of frame, outer cover, cooling device, dehumidifying device, mixing device and rotating device. The whole machine is made of 304 stainless steel.
2. The heated product can quickly cool down the material temperature by automatically screening the cooling line of cold air. At the same time, the rotary screen screens impurities. The impurities will uniformly fall into the collection box, which is convenient for cleaning and discharging.
3. Material flows forward slowly through the rotating device (adjustable speed), so that the material is stirred evenly. At the same time, the temperature of the material is lowered by the air flow on both sides of the fan, and the dehumidification decoration is discharged at the same time. (External cold source can be added separately)Uses: Mainly used in granular materials: such as sesame, soybean, wheat, honey feed, etc.
Product Parameters
Automatic Continuous Cooler: | LC-800 |
Inner Cylinder Roller Screen (mm): | 800*4000 |
Thickness of Inner Cylinder Roller Screen (mm): | 2 |
Frame body: | 60*60*3 |
Supporting wheel: | / |
Reducer: Power: | 2.2 kW speed ratio (1:35) variable frequency adjustable |
Frequency converter: | 2.2 KW |
Chain: | 12' |
Stirred tooth: | / |
Reduction stand: | / |
Control box: | / |
Discharging mode： | Continuous discharge |
Cover thickness (mm)： | 1.2 |
Thickness of Stirring Tooth (mm): | 2.2 |
Axial fan: | 0.55kw |
High Temperature Resistant Induced Draft Fan: | 0.37kw |
Product features and applications
Product details Multi-directional display
