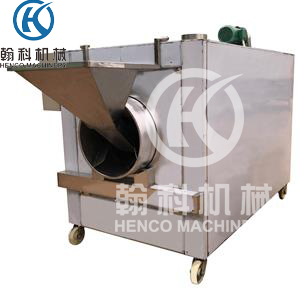

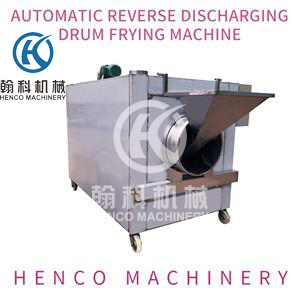

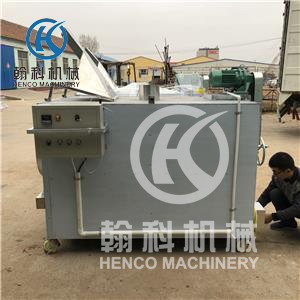

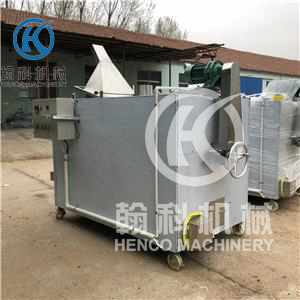

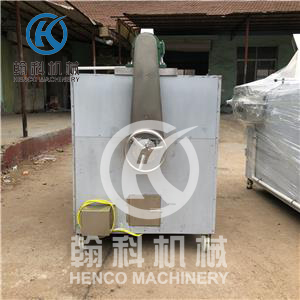

Automatic Reverse Discharging Drum Frying Machine
The utility model has the advantages of convenient use, high thermal efficiency, health, environmental protection, safety and reliability, safe operation, etc.
- Henco
- Shandong China
- Within 15 Days
- Factory Direct Supply
- Information
- Video
Product Introduction
Automatic Reverse Discharging Drum Frying Machine is a new type of equipment with high automation, energy saving and environmental protection,
which improves the heating mode on the basis of traditional heating. The power of the inverted discharging drum stir-frying machine can be
adjusted in five grades. The utility model has the advantages of convenient use, high thermal efficiency, sanitation, environmental protection,
safety and reliability, and safe operation, etc.
Application: Automatic Reverse Discharging Drum Frying Machine is widely used in all kinds of particulate materials, powder materials, oily particulate materials, etc.
Product Parameters
Model: | LC-600 |
Diameter: | 600*800 mm |
Rotation power(Kw)： | 1.5 |
Flip and Stir(Kw)： | 0.75 Dual core RV |
Frequency converter(Kw)： | 1.5 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 1.2mm |
Heating resource： | Electromagnetic heating |
Discharge： | Reverse discharge |
Electromagnetic heating power（Kw）： | 25-30 |
Voltage ： | 380V+1 |
Dimension： | 1650*1450*1550 |
Equipment capacity（kg） | |
Dried chilies： | 40-50 |
Dried meat floss： | 30-40 |
Soybean, wheat, ric : | 50-60 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 50-60 |
Model: | LC-700 |
Diameter: | 700*700 mm |
Rotation power(Kw)： | 1.5 |
Flip and Stir(Kw)： | 0.75 Dual core RV |
Frequency converter(Kw)： | 1.5 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 1.2mm |
Heating resource： | Electromagnetic heating |
Discharge： | Reverse discharge |
Electromagnetic heating power（Kw）： | 25-40 |
Voltage ： | 380V+1 |
Dimension： | 1550*1550*1600 |
Equipment capacity（kg） | |
Dried chilies： | 50-60 |
Dried meat floss： | 40-50 |
Soybean, wheat, ric : | 70-80 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 70-80 |
Model: | LC-900 |
Diameter: | 900*1000 mm |
Rotation power(Kw)： | 2.2 |
Flip and Stir(Kw)： | 1.5 Dual core RV |
Frequency converter(Kw)： | 2.2 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 1.2mm |
Heating resource： | Electromagnetic heating |
Discharge： | Reverse discharge |
Electromagnetic heating power（Kw）： | 50-60 |
Voltage ： | 380V+1 |
Dimension： | 1850*1600*1800 |
Equipment capacity（kg） | |
Dried chilies： | 70-80 |
Dried meat floss： | 50-60 |
Soybean, wheat, ric : | 100-120 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 100-120 |
Model: | LC-1000 |
Diameter: | 1000*1200 mm |
Rotation power(Kw)： | 2.2 |
Flip and Stir(Kw)： | 1.5 Dual core RV |
Frequency converter(Kw)： | 2.2 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 1.2mm |
Heating resource： | Electromagnetic heating |
Discharge： | Reverse discharge |
Electromagnetic heating power（Kw）： | 50-60 |
Voltage ： | 380V+1 |
Dimension： | 2050*1650*1800 |
Equipment capacity（kg） | |
Dried chilies： | 100-120 |
Dried meat floss： | 70-80 |
Soybean, wheat, ric : | 150-200 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 150-200 |
Product features and applications
Product details Multi-directional display
