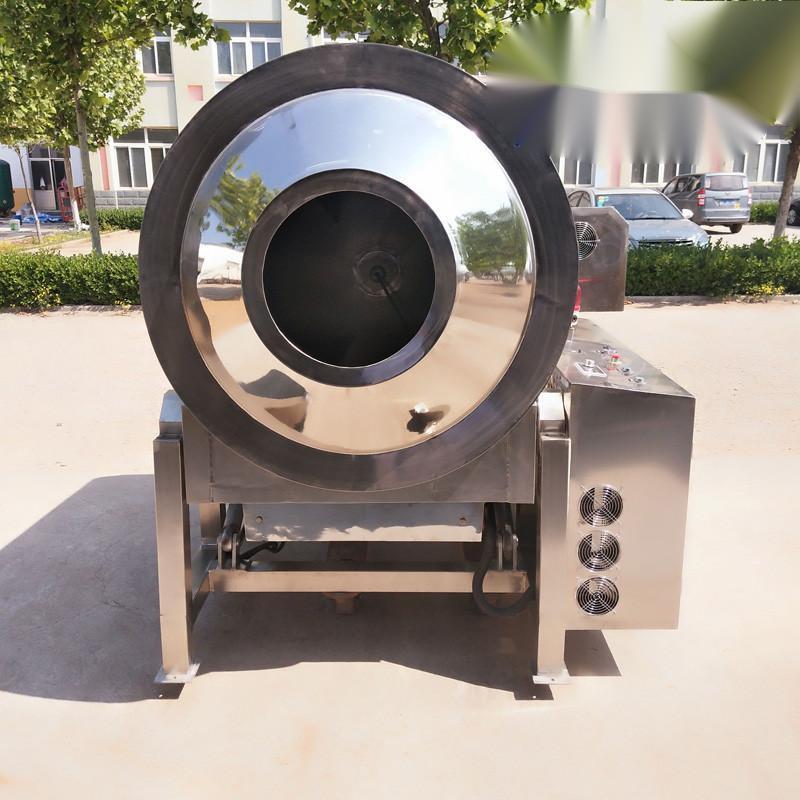

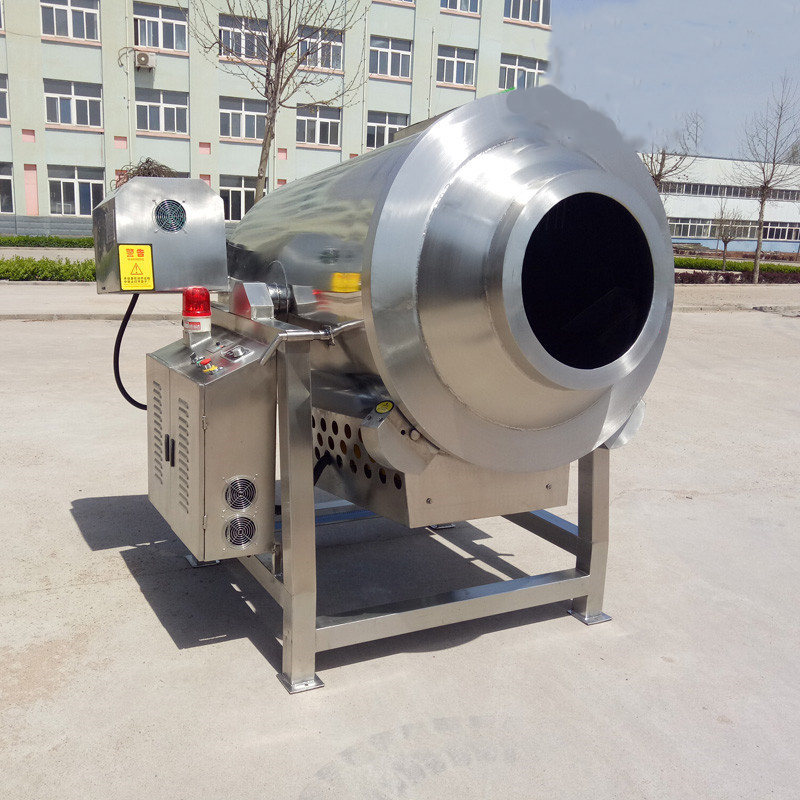

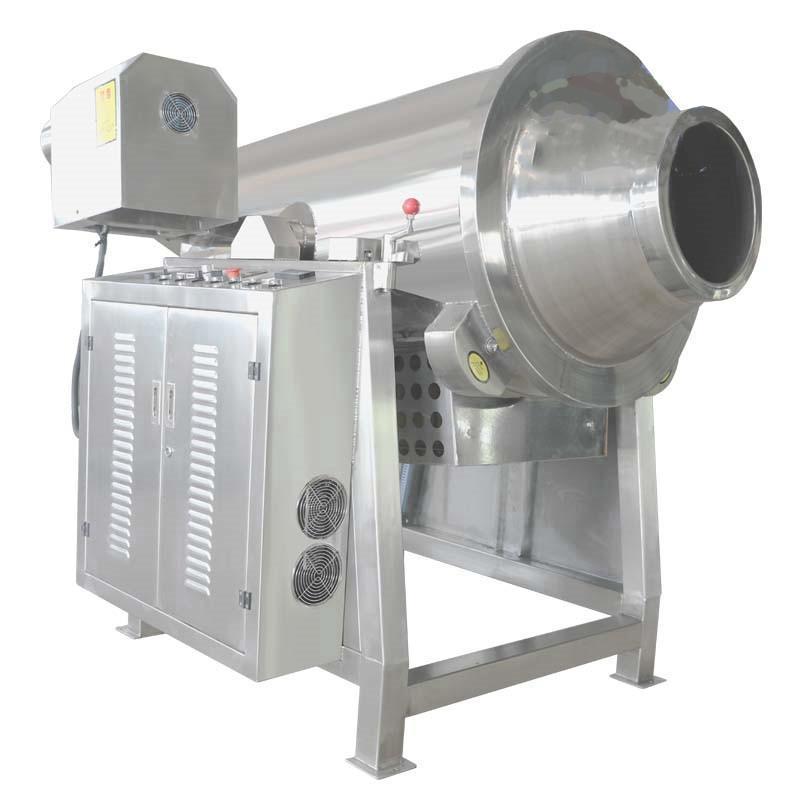

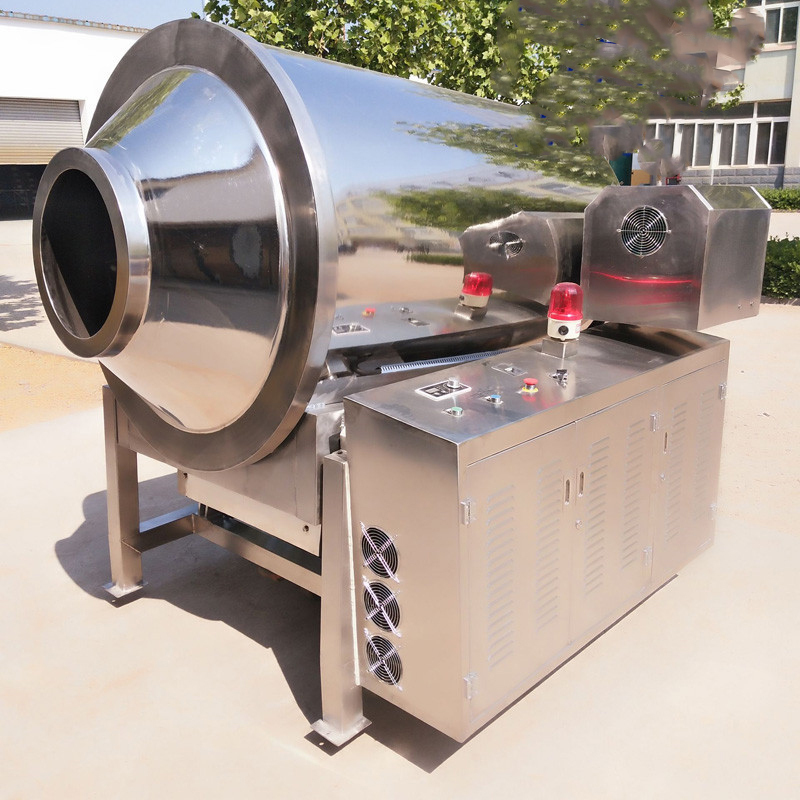

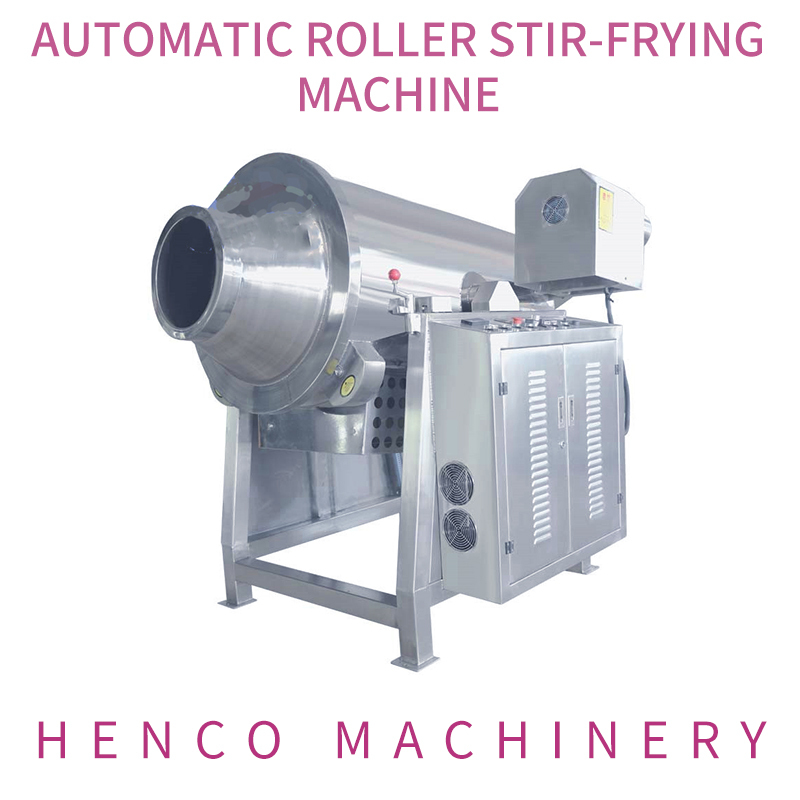

Automatic Roller Stir-Frying Machine
New equipment with high degree of automation, energy saving and environmental protection. Safe and reliable equipment, safe operation.
- Henco
- Shandong China
- Within 15 Days
- Factory Direct Supply
- Information
- Video
Product Introduction
The electromagnetic drum stir-frying machine is a new type of equipment with high automation, energy saving and environmental protection,which improves the heating mode on the basis of traditional heating. The power of electromagnetic heating drum stir-frying machine can be divided into five grades. The utility model has the advantages of convenient use, high thermal efficiency, sanitation, environmental protection,
safety and reliability, and safe operation, etc.
Application: It is widely used in all kinds of particulate materials, powder materials, oily particulate materials, etc.
Product Parameters
Model: | LC-600 |
Diameter: | 600*800 mm |
Rotation power(Kw)： | 1.5 |
Flip and Stir(Kw)： | 0.75 Dual core RV |
Frequency converter(Kw)： | 1.5 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 3mm |
Heating resource： | Electromagnetic heating |
Discharge： | Automatic |
Electromagnetic heating power（Kw）： | 25-30 |
Voltage ： | 380V+1 |
Dimension： | 1650*1450*1550 |
Equipment capacity（kg） | |
Dried chilies： | 40-50 |
Dried meat floss： | 30-40 |
Soybean, wheat, ric : | 50-60 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 50-60 |
LC-700 | |
Diameter: | 700*700 mm |
Rotation power(Kw)： | 1.5 |
Flip and Stir(Kw)： | 0.75 Dual core RV |
Frequency converter(Kw)： | 1.5 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 3mm |
Heating resource： | Electromagnetic heating |
Discharge： | Automatic |
Electromagnetic heating power（Kw）： | 25-40 |
Voltage ： | 380V+1 |
Dimension： | 1550*1550*1600 |
Equipment capacity（kg） | |
Dried chilies： | 50-60 |
Dried meat floss | 40-50 |
Soybean, wheat, ric : | 70-80 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 70-80 |
Model: | LC-900 |
Diameter: | 900*1000 mm |
Rotation power(Kw)： | 2.2 |
Flip and Stir(Kw)： | 1.5 Dual core RV |
Frequency converter(Kw)： | 2.2 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 3mm |
Heating resource： | Electromagnetic heating |
Discharge： | Automatic |
Electromagnetic heating power（Kw）： | 50-60 |
Voltage ： | 380V+1 |
Dimension： | 1850*1600*1800 |
Equipment capacity（kg） | |
Dried chilies： | 70-80 |
Dried meat floss： | 50-60 |
Soybean, wheat, ric : | 100-120 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 100-120 |
Model: | LC-1000 |
Diameter: | 1000*1200 mm |
Rotation power(Kw)： | 2.2 |
Flip and Stir(Kw)： | 1.5 Dual core RV |
Frequency converter(Kw)： | 2.2 |
Inner roller ： | Stainless steel 304 |
Outer roller： | Stainless steel 304 |
Inner roller thickness： | 6mm |
Outer roller thickness： | 3mm |
Heating resource： | Electromagnetic heating |
Discharge： | Automatic |
Electromagnetic heating power（Kw）： | 50-60 |
Voltage ： | 380V+1 |
Dimension： | 2050*1650*1800 |
Equipment capacity（kg） | |
Dried chilies： | 100-120 |
Dried meat floss： | 70-80 |
Soybean, wheat, ric : | 150-200 |
Flax seed ,rapeseed ,peanut, pumpkin seed ,bran nut ,Chinese medicine: | 150-200 |
Product features and applications
Product details Multi-directional display
