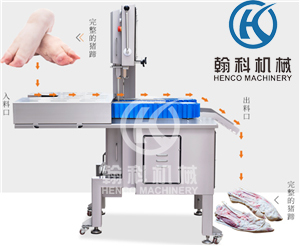

Intelligent Half Sawing Pig Trotters Machine
The whole machine is made of stainless steel, with a safety cover and safety and convenience, with a safety brake to open the protective cover 0.5, stop within seconds. High speed and fast.
- Henco
- Shandong China
- Within 15 Days
- Factory Direct Supply
- Information
- Video
Product brief introduction
The half sawing machine is a kind of equipment specially used for cutting pig trotter half saw. This equipment can be used in slaughtering enterprises, pig foot processing plants and other places to achieve fast and accurate segmentation of pig feet.
Parameter
External dimensions: | 1400X800X1735mm |
Through the height - bone saw machine: | 366mm |
Through the height - conveyor belt: | 100mm |
Through the width - bone saw machine: | 282mm |
Through the width - conveyor belt: | 20~100mm |
Height of table: | 902mm |
Size of table: | 1400X800mm |
Saw blade specification: | 16X2490mm |
Specification of pulley: | 300mm |
Main motor power: | 2.2kw |
Transfer motor power: | 0.75kw |
Rated speed of motor: | 1440r/min |
Speed of feed: | 0.43m/s |
Saw blade linear speed: | 23m/s |
Emergency stop braking time: | 0.5s |
Whole machine weight: | 260Kg |
Product features and applications
1. Heavy frame structure design; The whole machine is made of stainless steel, and the surface is sandblasted.
2. Improved saw blade tightening adjustment system.
3. The Italian Lame saw blade is sharp and durable with a clear and crisp edge.
Product details introduced multi-directional display

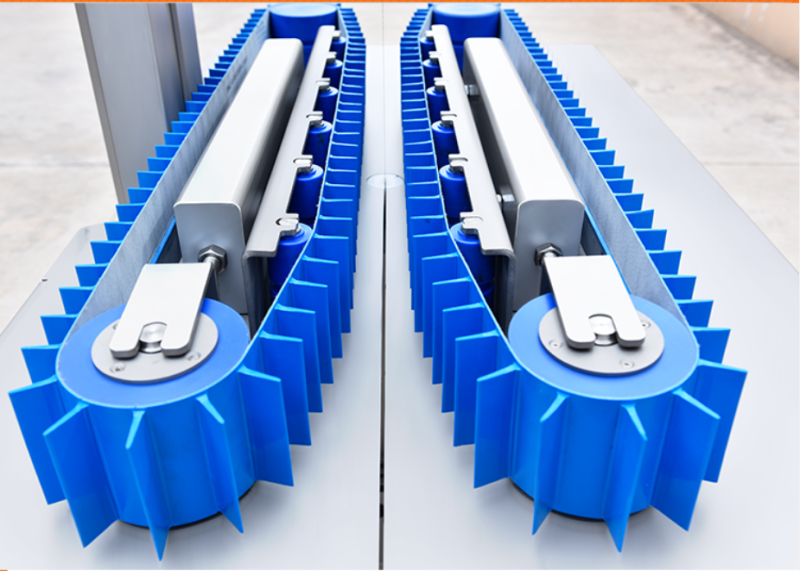

1. Two-way conveyor belt. The conveyor belt adopts pvc food grade anti-slip design, stable operation and adjustable width.

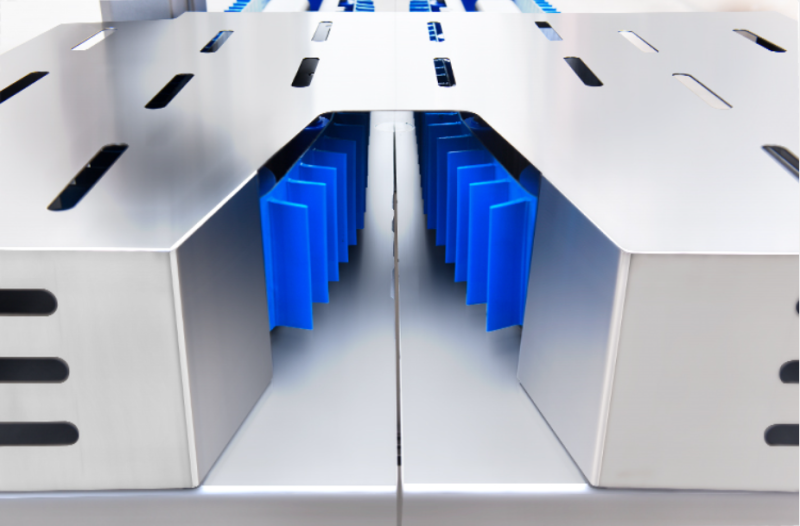

2. Increase the inlet. The inlet is designed with detachable thickened stainless steel protective cover, making it easy to discharge and safer to use.
3.The control panel. The operation panel is composed of a start button, a close button and an emergency stop button, all of which are waterproof switch design.
4. Increase the saw band wheel. The strap wheel is safer and the direct drive saw blade is stable and durable.
