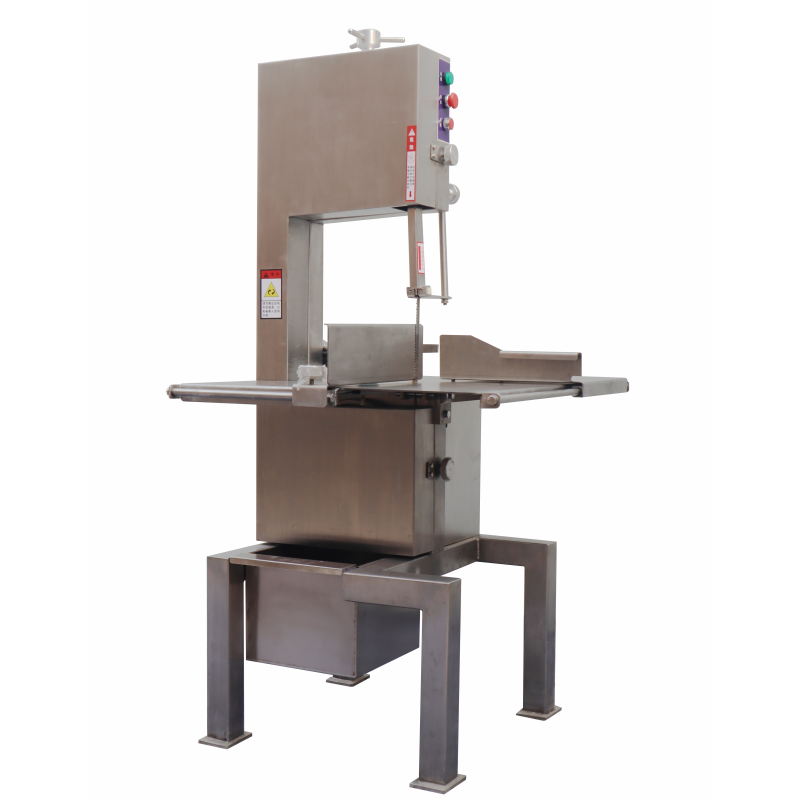

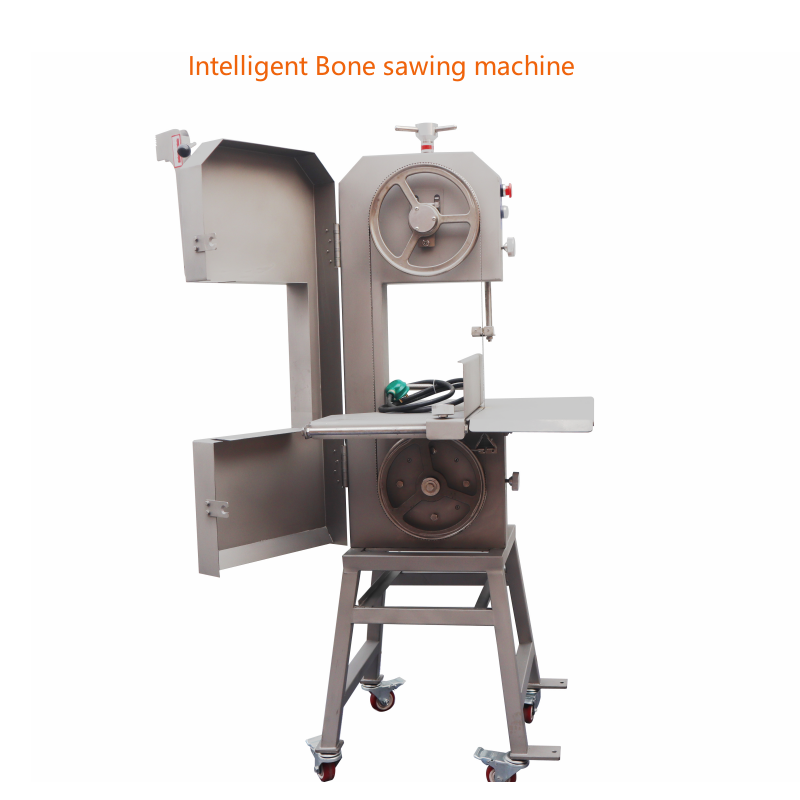

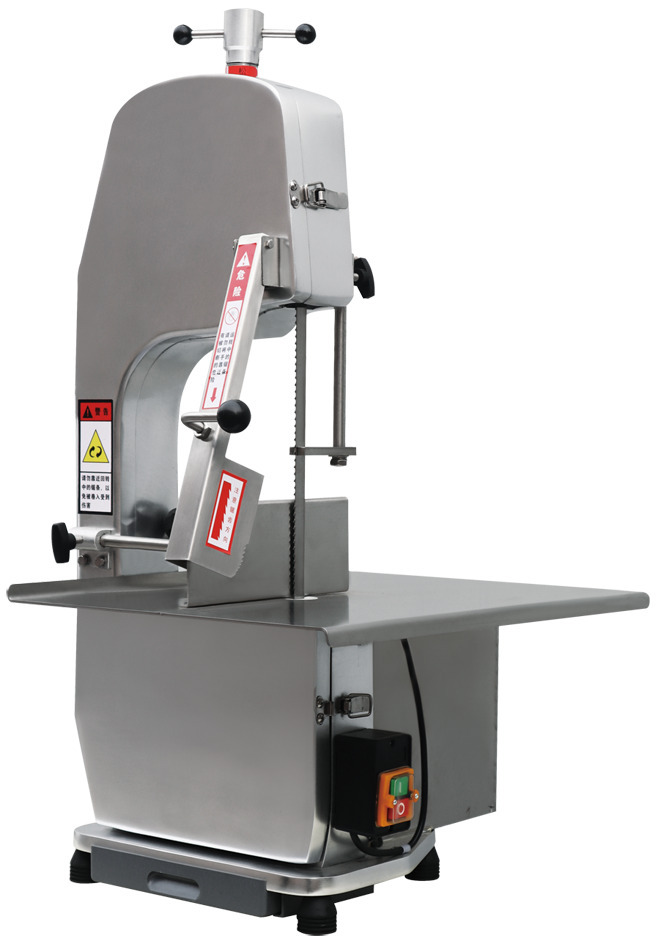

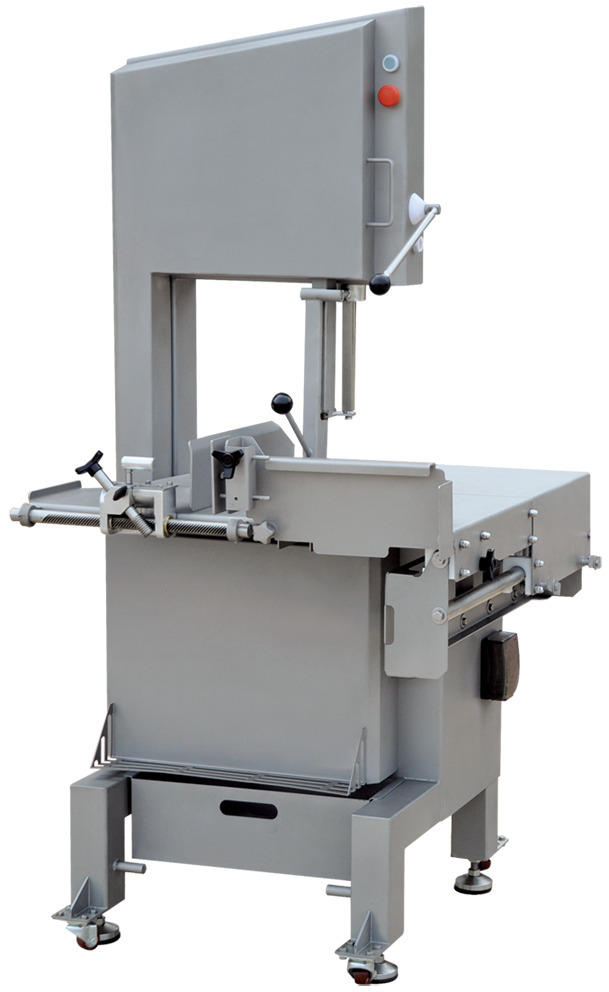

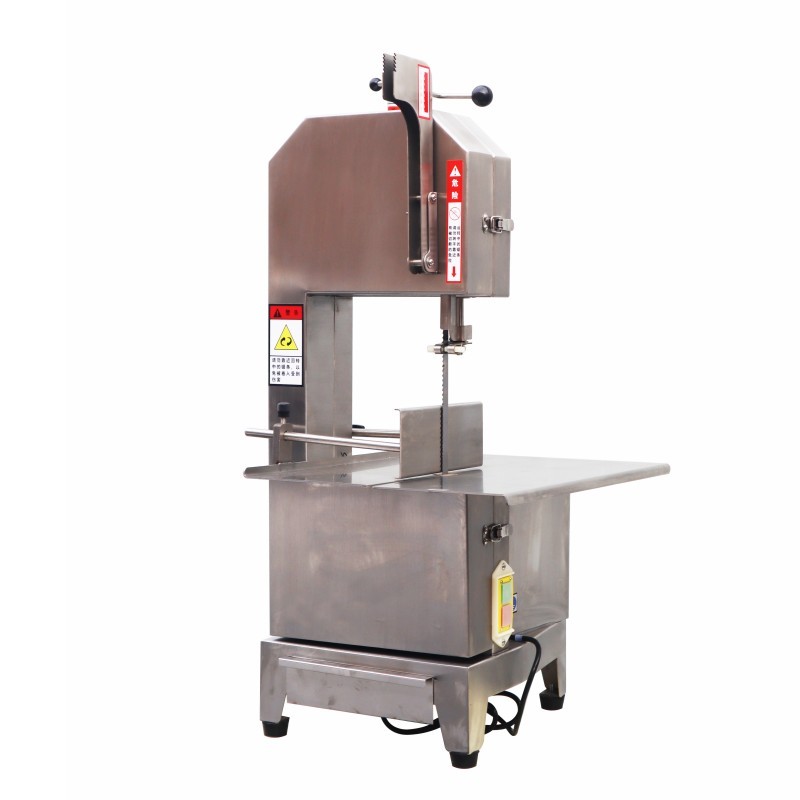

Intelligent Bone Sawing Machine
The whole machine structure is stainless steel, the use of Italian saw blade, sharp and durable, feeding safety, saving time and labor, bone cutting fast, safe and stable.
- Henco
- Shandong China
- Within 15 Days
- Factory Direct Supply
- Information
- Video
Product brief introduction
Bone sawing machine, composed of frame, motor, circular saw, horizontal table, electronic control board, suitable for all kinds of small and medium-sized animal bones, frozen meat, with fish bone, frozen fish, ice processing equipment.
Product parameters
SJC-360:
External dimensions: | 845X700X1735mm |
Through the height : | 360mm |
Through the width: | 282mm |
Height of table: | 918mm |
Size of table: | 845X700mm |
Saw blade specification: | 16X2495mm |
Specification of pulley: | 300mm |
Main motor power: | 2.2kw |
Rated speed of motor: | 1440r/min |
Saw blade linear speed: | 23m/s |
Emergency stop braking time: | 0.5s |
Whole machine weight: | 142Kg |
SJC-380:
External dimensions: | 800X700X1740mm |
Cutable dimension: | The highest380mm,TheWidest300mm |
Saw blade specification: | 2490mm |
Size of table: | 800X700mm |
Whole machine weight: | 128Kg |
Speed of operation: | 1500m/min |
Electric machine: | 380V/1.5KW(50Hz) |
SJC-280:
Electric machine: | Three phase 380V/1.1KW Single phase 220V/1.1KW(50Hz) |
Speed of operation: | 1100m/min |
Saw blade specification: | 1180mm |
Cutable dimension: | The highest280mm,TheWidest200mm |
Size of table: | 600X430mm |
External dimensions: | 600mmX540mmX1500m |
Whole machine weight: | 65kg |
SJC-300:
Electric machine: | Three phase 380V/1.5KW(50Hz) |
Speed of operation: | 1500m/min |
Saw blade specification: | 2100mm |
Cutable dimension: | The highest300mm TheWidest250mm |
Size of table: | 690mmX600mm |
External dimensions: | 690mmX600mmX1550mm |
Whole machine weight: | 70kg |
SJC-250B/250M:
Electric machine: | Three phase 380V/1750W Single phase 220V/750W,1100w(50Hz) |
Speed of operation: | 915m/min |
Saw blade specification: | 1650mm |
Cutable dimension: | The highest250mm TheWidest180mm |
Size of table: | 500mmX350mm |
External dimensions: | 500mmX445mmX850mm |
Whole machine weight: | 40kg |
Product features and applications
1. Bone saw machine is suitable for all kinds of small and medium-sized animal bones, frozen meat, fish bone, frozen fish, ice processing.
2. For cutting small pieces of frozen meat and ribs.
3. Widely used in large-scale centralized food processing plants, slaughterhouses, meat processing plants and other places.
Product details introduced multi-directional display
