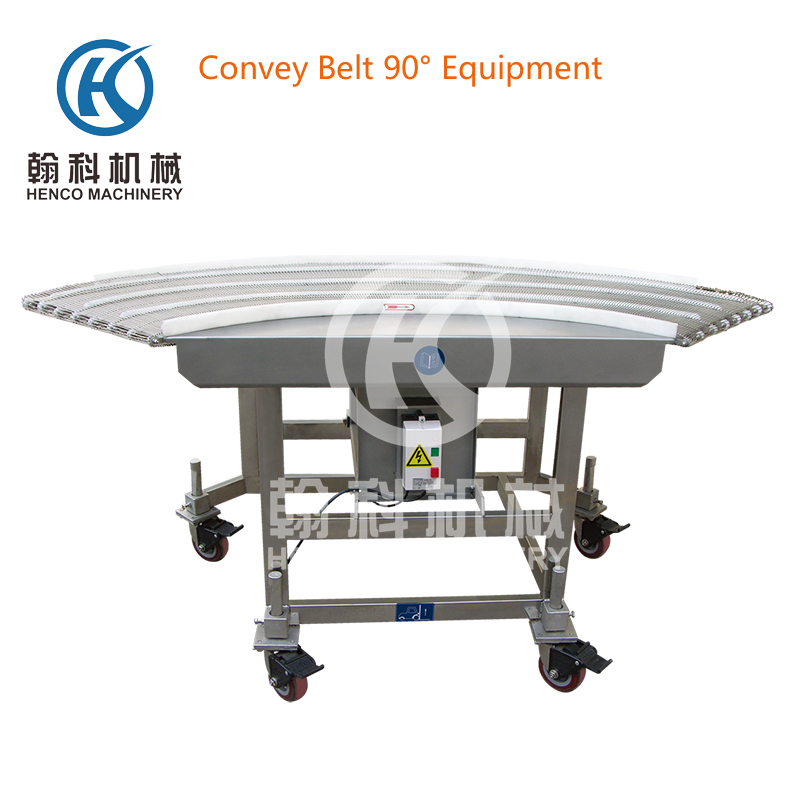

Convey Belt 90° Equipment
Connect the equipment conveyor belt to send the food 90 degrees to the next equipment processing location.
- Henco
- Shandong China
- Within 15 Days
- Factory Direct Supply
- Information
- Video
Product brief introduction
Convey Belt 90° Equipment is a conveying equipment, mainly used to transfer items from one conveyor belt to another conveyor belt, to achieve the function of turning or transition. This kind of equipment usually adopts the belt conveying method, which can maintain stability during the turning process of different angles, and is suitable for various assembly line operations.
Parameter
Model : | HKZWJ600 |
Belt width : | 600mm |
Input height: | 1050mm |
Power : | 0.25kw |
Overall dimension : | 1700×900×1000mm |
Product features and applications
1. To convey the food products to the next processing position by 90° .
2. Adopt the domestic famous brand parts.
3. Grade of waterproof: Ip65
4. Stainless steel made and portion non-metal material, sa-feand reliable, in conformity with the standard of HACCP.
5. The Germany maintenance free bearing.
Product details introduced multi-directional display

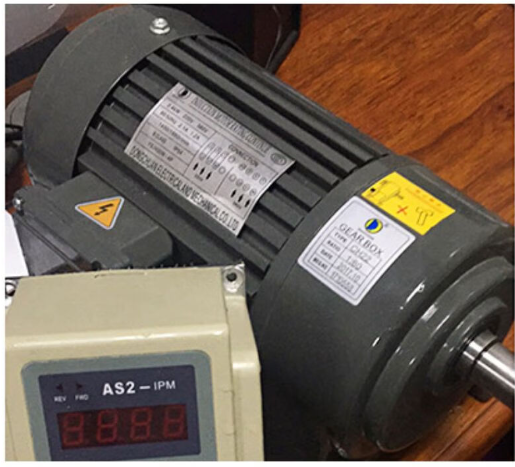

1. Powerful machineStrong power, long working time, stable performance; Suitable power motor and frequency modulator can be configured according to load requirements and transfer speed.

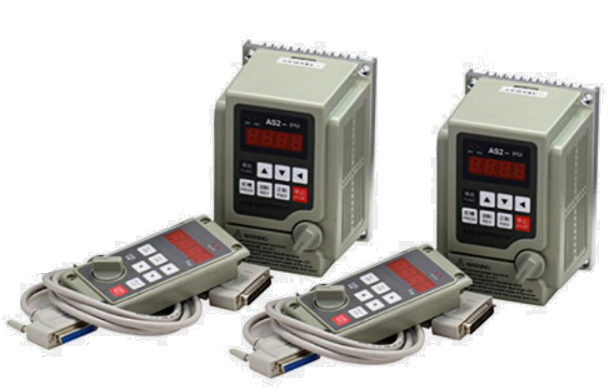

2. Frequency modulator. Simple operation, multi-gear adjustment of the conveyor belt running speed, different speed configuration of different power inverter, adjust according to demand.

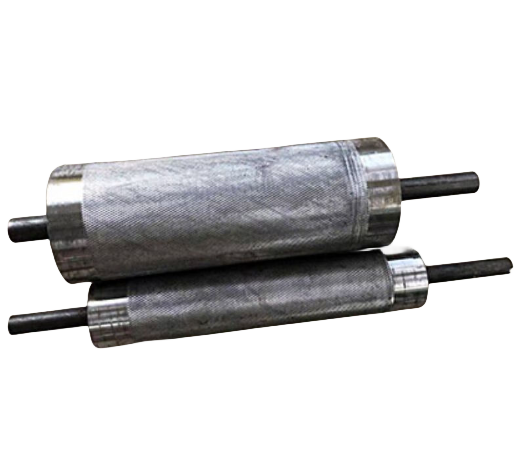

3.Wear-resistant roller. Using quality carbon steel material, smooth operation, durable, not easy to rust.

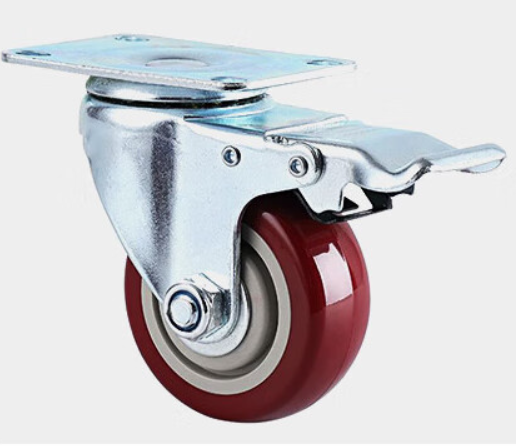

4. Moving caster. With brake design, strong stability, easy to move, flexible adjustment work; Also can choose fixed foot cup, stable and reliable.
